Products Description

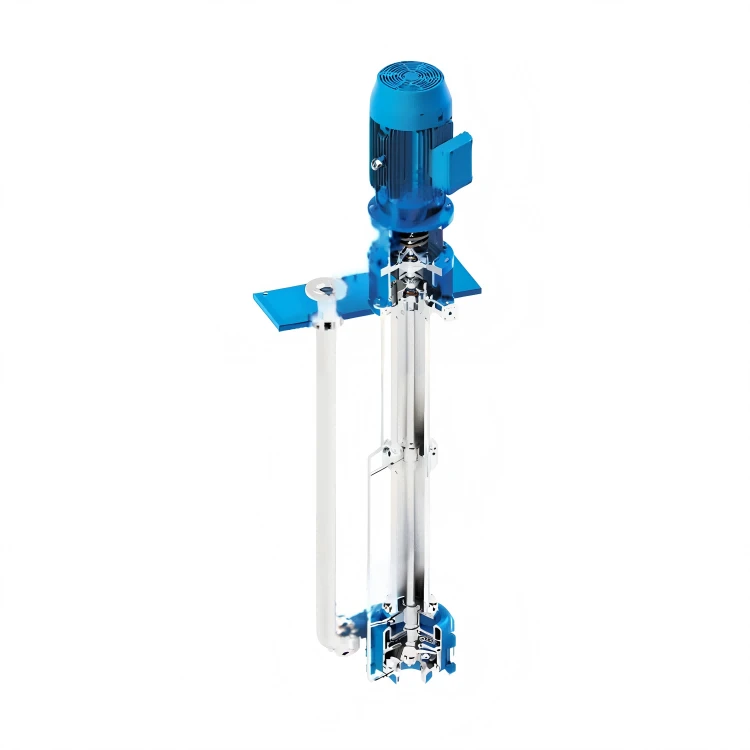

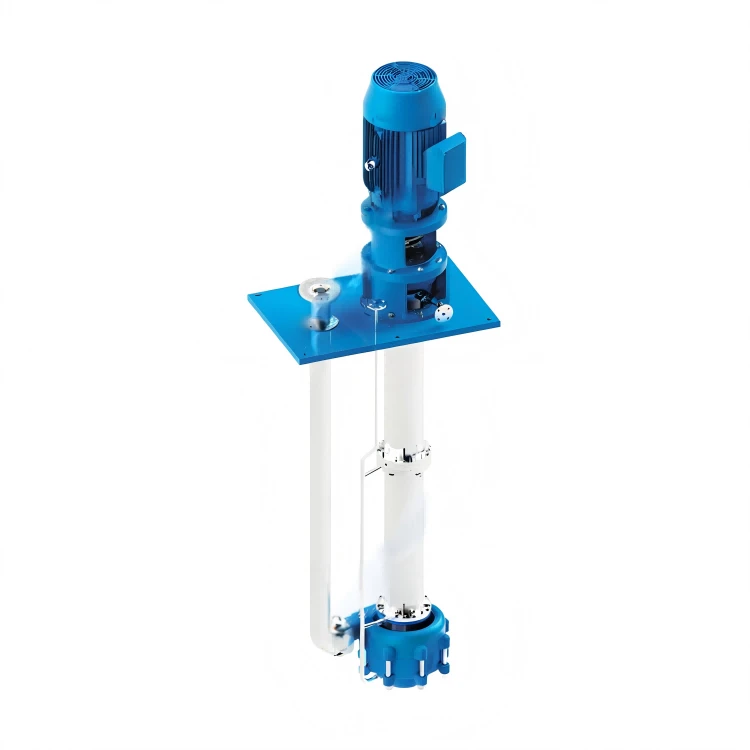

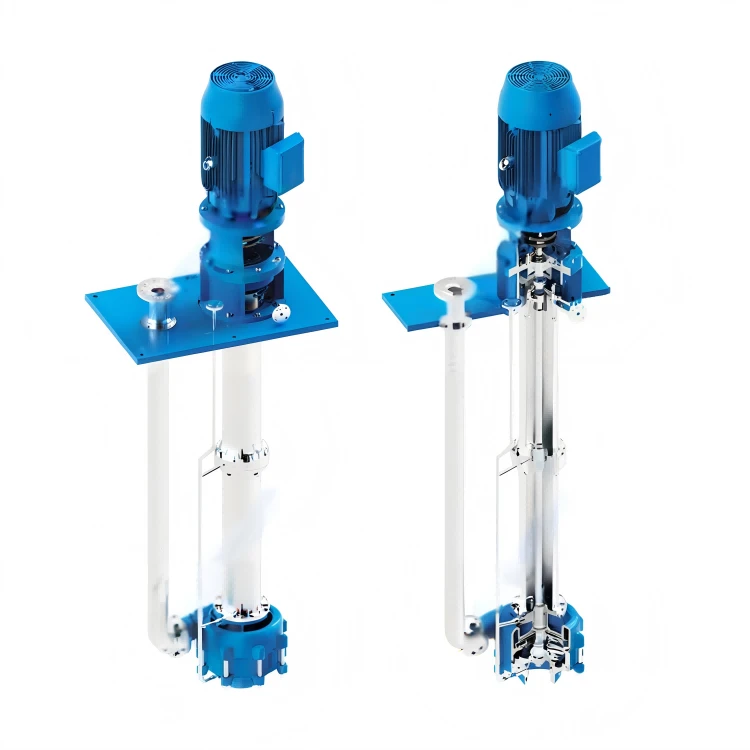

The HP63 is a multistage, single-suction, vertical centrifugal pump designed to deliver exceptional performance in deep well and high-pressure applications. Engineered in compliance with ISO 5199 standards, this pump features closed impellers with guide vanes and offers submersion depths up to 10 meters, making it an ideal solution for industrial water supply, boiler feed systems, and high-pressure irrigation.
Key Features & Benefits
- Closed Impeller with Guide Vanes: The precision-machined closed impellers and diffuser guide vanes ensure optimal hydraulic efficiency (up to 85%) and smooth flow characteristics, minimizing turbulence and vibration.
- ISO 5199 Compliance: Manufactured to exacting international standards, guaranteeing interchangeable dimensions, reliable performance, and global acceptance in critical applications.
- Deep Submersion Capability: The 10m submersion rating with corrosion-resistant materials (AISI 304/316 stainless steel) allows installation in deep wells, sumps, and underground reservoirs.
- Maintenance-Friendly Design: Features standardized ISO-dimensioned bearings, cartridge mechanical seals, and top-access assembly for easy servicing without well extraction.
Performance parameters
|
Type |
Vertical |
|
Capacities |
8~420 m³/h |
|
Heads |
15~210 m |
|
Temperatures |
-20~+120℃ |
|
Pressures |
~50 bar |
|
Common material |
Carbon steel, 12%Cr, 304SS, 304LSS, 316SS, 316LSS, duplex steel, super duplex steel, Hastelloy, 20# alloy, Monel alloy, titanium, etc. |
Commitment to Service
- 24-hour / 365 days service availability
- Engineering, consulting
- Installation, commissioning/start-up
- Maintenance
- Diagnostics, failure analysis
- Spare parts
- Operational Training
- Life cycle cost evaluation
- Vibration & noise analysis
- On-site testing
- Pre-engineered pumps and maintenance
- Energy conservation retrofit
