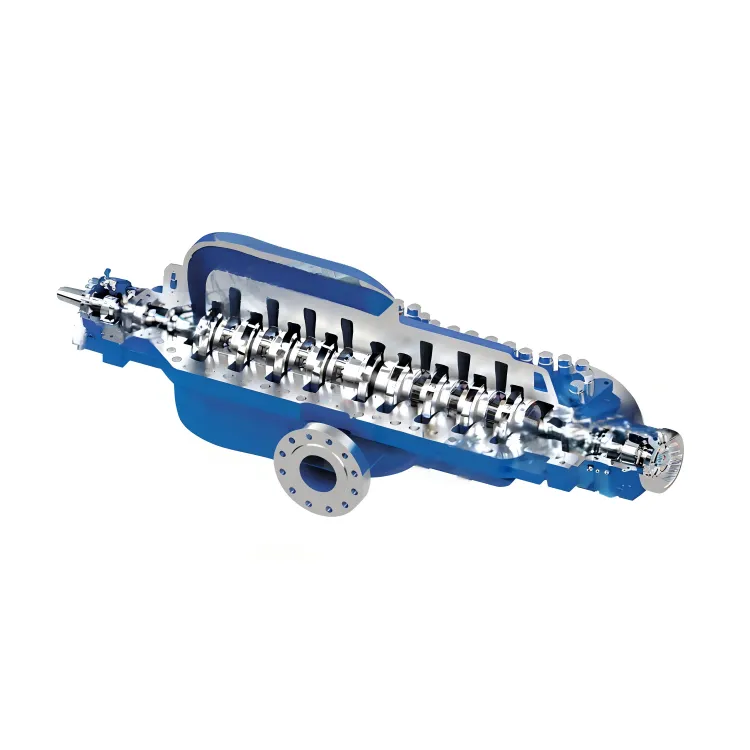

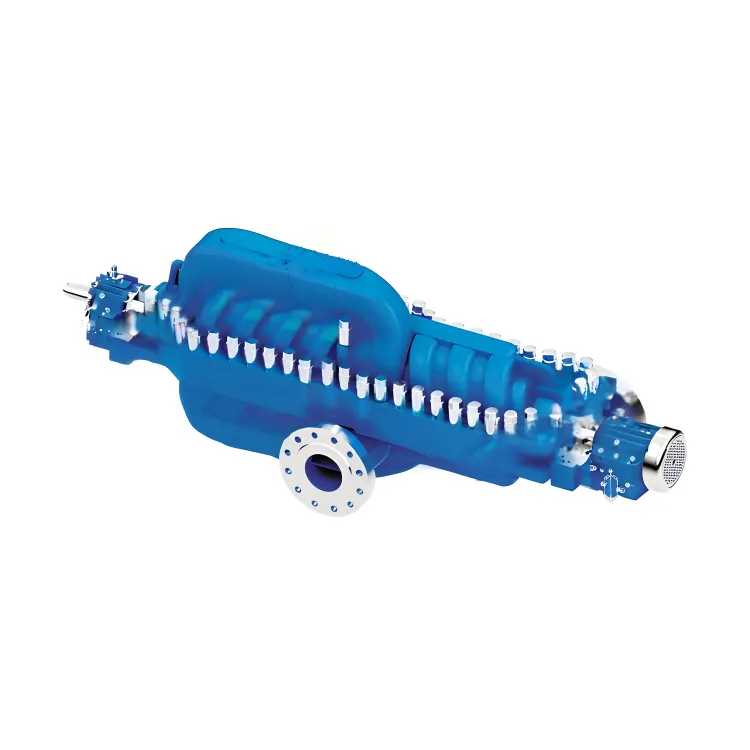

Pumps of the series HM01 are centrifugal pumps, fully compliance with APl 610 BB3. Developed as horizontal,multistage, axially split pumps.
The axial split casing is convenient for...
BB3 Pump
Your Professional BB3 Pump Supplier
Our factory has a complete portfolio covering pump R&D, manufacturing, sales, and after-sales service to best meet customer requirements. All key staff members have experience working at top-tier domestic and international pump companies. Our chief engineers and managers each have over 20 years of experience in the pump industry.
Production Market
We serve markets in Italy, France, Switzerland, and Russia. We have been authorized by the Aturia Group—a pump company with branches in France, Switzerland, and Italy—as their local representative for sales, assembly, and service.
Our Service
After equipment installation, we perform commissioning (debugging) of centrifugal pumps to ensure normal operation. We also provide operational training to customers, guiding them in the correct use, maintenance, and care of centrifugal pumps to help extend the service life of the equipment.
Understanding Customer Requirements
Through detailed communication in the early stages, we strive to fully understand each customer’s needs and usage environment, including product categories, specifications, performance requirements, and working conditions.

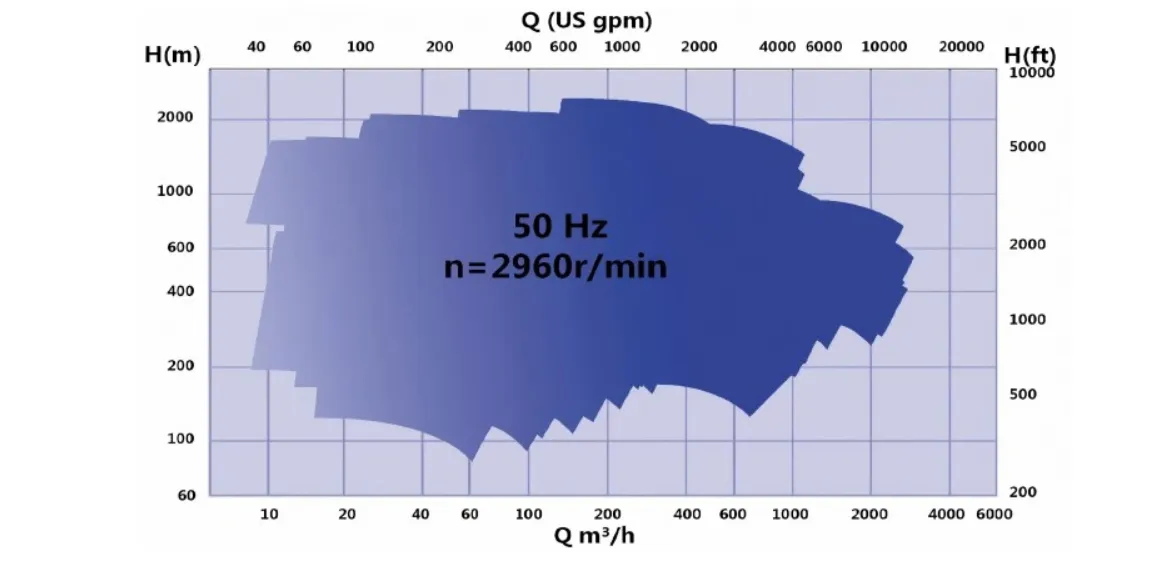

Performance Parameters
|
Type |
Horizontal |
|
Capacities |
~2400 m³/h |
|
Heads |
~2000 m |
|
Temperatures |
-20~+400℃ |
|
Pressures |
~260 bar |
|
Common material |
Carbon steel, 12%Cr, 304SS, 304LSS, 316SS, 316LSS, duplex steel, super duplex steel, Hastelloy, 20# alloy, Monel alloy, titanium, etc. |
STANDARD FEATURES
Wide hydraulic coverage
Application tailored hydraulic selections
600/900/1500# flange ratings
Available in all API 610 Table H-1, S-4 through D-2 materials
Hydraulically opposed impeller arrangement for thrust balancing
Single-suction first stage (HM) or double-suction first stage (HMD)
Axially split, precision milled parting flanges
Split case wear rings and center bushings for ease of maintenance
Integral balance line
Inpro/Seal bearing housing closures
Heavy Duty baseplate, drip rim or drip pan designs
OPTIONAL FEATURES
High pressure special casing design.
Positive retention of impellers in both directions.
Fan/Heat-sink bearing housing cooling arrangement for operation at elevated temperatures, to eliminate the need for cooling water.
Magnetic bearing housing isolators.
All bearing combination arrangements are available where suitable: Ball/Ball, Sleeve/Ball, Tilt Pad/Sleeve.
DESIGN STANDARD
·API 610 latest edition
MATERIALS
·All API 610 class materials
·Special materials, upon request
OPERATING RANGE
Capacity up to 3,000 m³/h (13,210 gpm)
>>
Head up to 2,500 m (8,200 ft.)
>>
Pressure up to 300 bar (4,350 psig)
>>
Temperature up to 200°C (390°F)
>>
Speed of rotation up 6,000 RPM
OPTIONS
All API material options:
S-4,S-5,S-6,S-8,C-6,A-8,D-1,D-2, plus bespoke options.
Composite wear parts, for improved efficiency and rotor dynamics.
Split wear parts for ease of maintenance.
Specialist Options: High speed upto 6000 RPM, low SG density modifications.
