Products Description

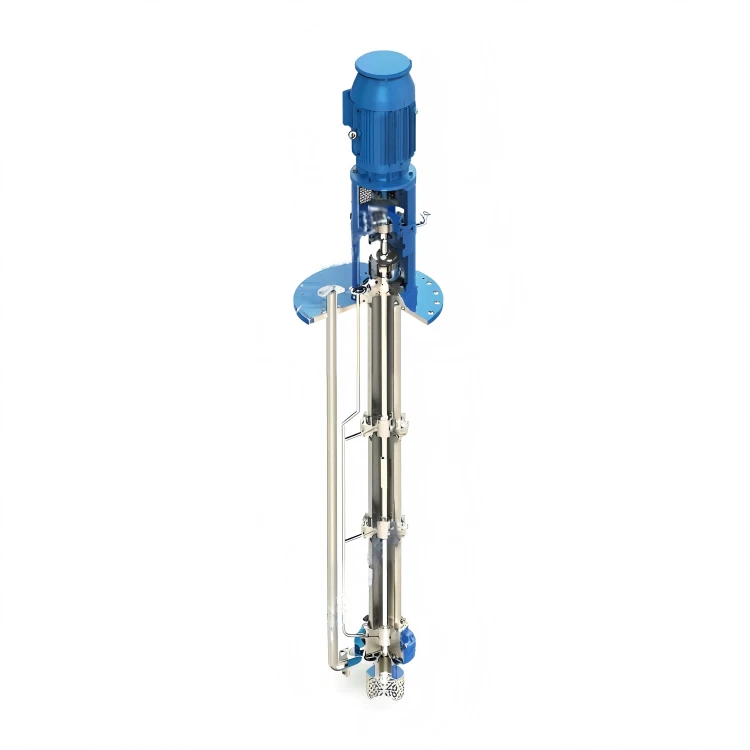

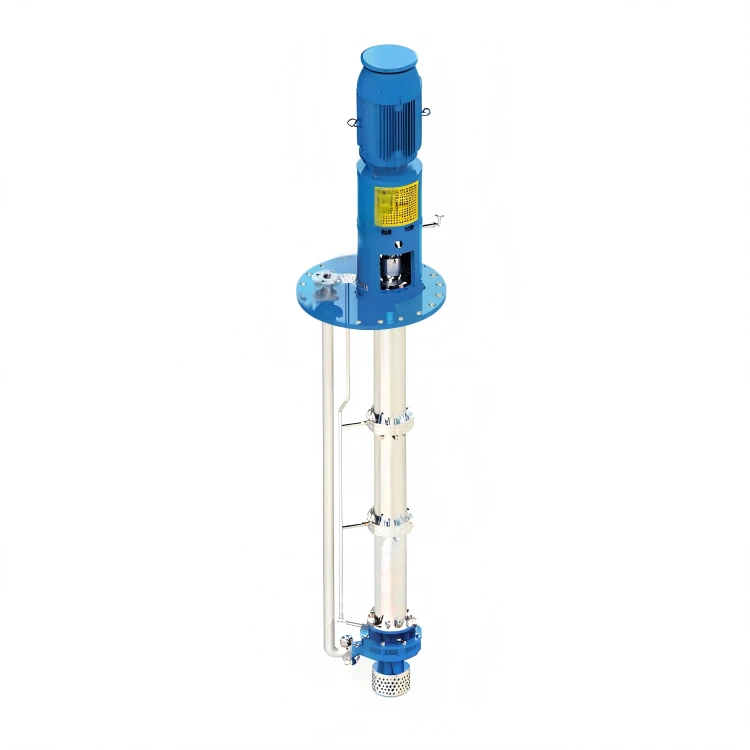

The HP64 is a high-performance, single-stage, single-suction vertical centrifugal pump engineered to meet the most stringent industry requirements. With dual compliance to both API 610 and ISO 5199 standards, this pump delivers exceptional reliability for critical fluid handling applications across multiple industries.
Key Features & Benefits
- Premium Hydraulic Performance: The precision-engineered closed impeller design ensures optimal efficiency and stable operation across the entire performance curve
- Dual Standard Certification: Meets both API 610 and ISO 5199 specifications, guaranteeing superior quality, safety, and interchangeability
- Versatile Sealing Solutions: Offers flexible configuration with either mechanical seals (single or double) or traditional packing gland options to suit various operational needs
- Advanced Bearing System: Features oil-lubricated rolling bearings with precision machining for smooth operation and extended service life
- Adaptive Flushing Options: Configurable for either self-flushing or external flushing to maintain optimal seal performance in challenging conditions
Performance parameters
|
Type |
Vertical |
|
Capacities |
3~1000 m³/h |
|
Heads |
4~150 m |
|
Temperatures |
-20~+120℃ |
|
Pressures |
~50 bar |
|
Common material |
Carbon steel, 12%Cr, 304SS, 304LSS, 316SS, 316LSS, duplex steel, super duplex steel, Hastelloy, 20# alloy, Monel alloy, titanium, etc. |
Commitment to Service
- 24-hour / 365 days service availability
- Engineering, consulting
- Installation, commissioning/start-up
- Maintenance
- Diagnostics, failure analysis
- Spare parts
- Operational Training
- Life cycle cost evaluation
- Vibration & noise analysis
- On-site testing
- Pre-engineered pumps and maintenance
- Energy conservation retrofit
