Products Description

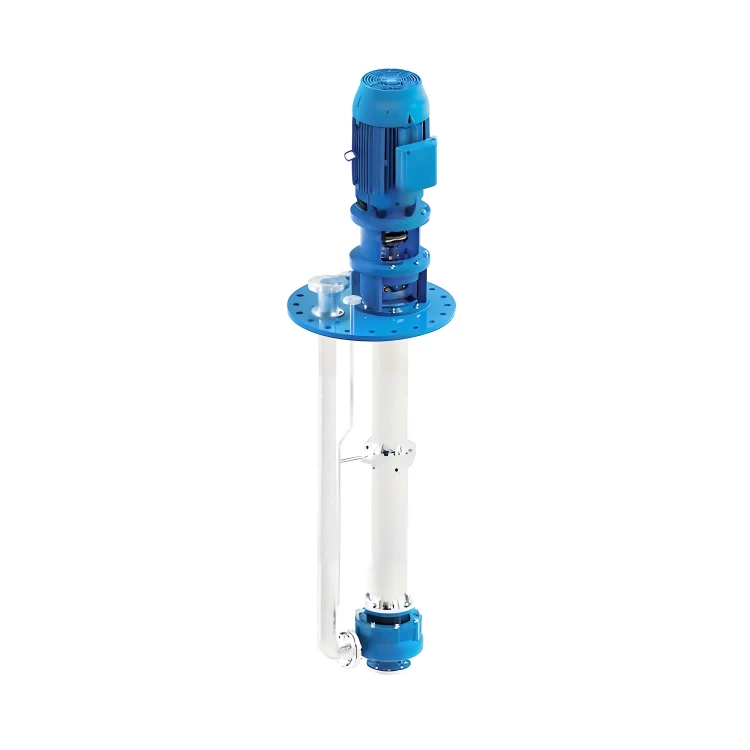

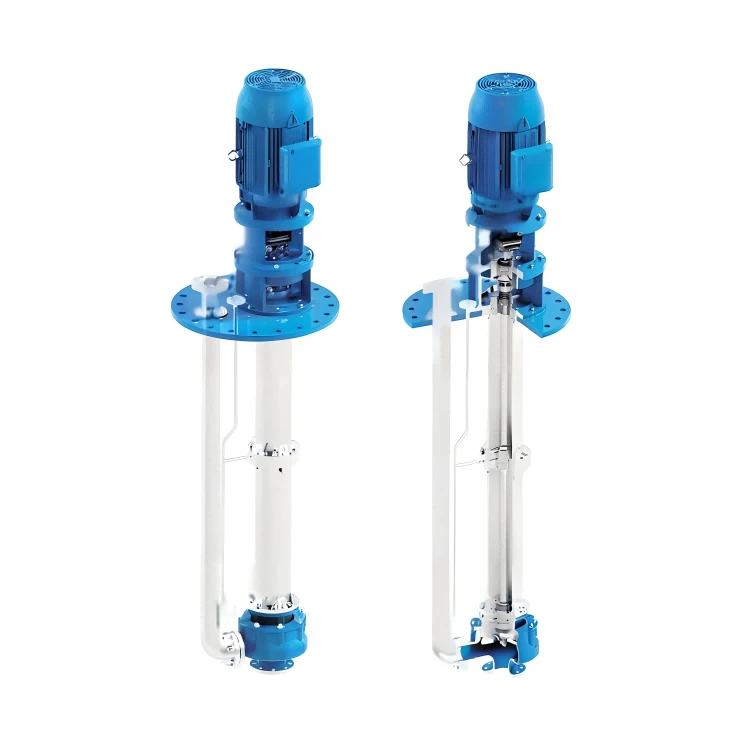

The HP56 is a single-stage, single-suction, vertical centrifugal pump featuring an advanced vortex impeller design, engineered for high-performance liquid handling in challenging environments.With a maximum submersion depth of 10 meters, this pump excels in applications involving solids-laden fluids, wastewater, and industrial process liquids, ensuring clog-free operation and long-term durability.
Key Features & Benefits
- Vortex Impeller Technology: The unique vortex impeller minimizes contact with solid particles, reducing wear and preventing clogging.This makes the HP56 for pumping slurries, sewage, and liquids with suspended solids without sacrificing efficiency.
- Robust Vertical Design: The fully submersible, vertical construction allows for compact installation in sumps, tanks, and deep wells, while corrosion-resistant materials ensure longevity in aggressive media.
- Wide Application Range: Perfect for municipal wastewater, industrial drainage, mining dewatering,and agricultural irrigation, especially where abrasive or fibrous materials are present.
- Easy Installation & Service: Pre-assembled units with 10m submersion capability simplify deployment, while the modular design allows quick disassembly for maintenance.
Performance parameters
|
Type |
Vertical |
|
Capacities |
3~800 m³/h |
|
Heads |
4~140 m |
|
Temperatures |
-20~+120℃ |
|
Pressures |
~25 bar |
|
Common material |
Carbon steel, 12%Cr, 304SS, 304LSS, 316SS, 316LSS, duplex steel, super duplex steel, Hastelloy, 20# alloy, Monel alloy, titanium, etc. |
Commitment to Service
- 24-hour / 365 days service availability
- Engineering, consulting
- Installation, commissioning/start-up
- Maintenance
- Diagnostics, failure analysis
- Spare parts
- Operational Training
- Life cycle cost evaluation
- Vibration & noise analysis
- On-site testing
- Pre-engineered pumps and maintenance
- Energy conservation retrofit
