Products Description

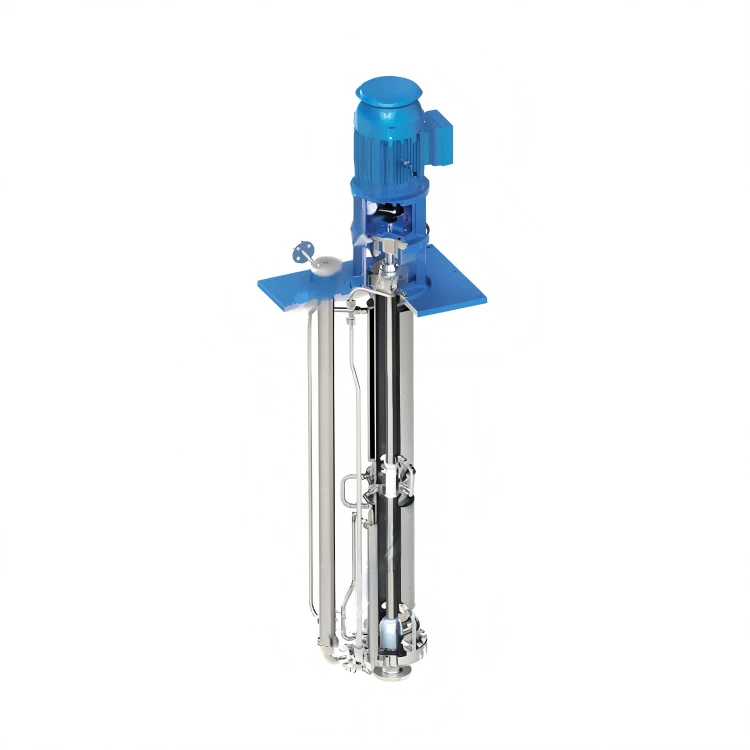

HP62 pumps are developed as Single-stage, single-suction, submerged centrifugal pumps, with enclosed impeller, the shafts are supported with plain bearings in the pump casing and bearing spiders, self-lubrication is introduced in plain bearings. There are heating jackets at the column, spiders and discharge pipes; the overall length under base plate up to 5.5m. Pumps' design is in conformity with 1S05199 standard. Stuffing seals are available.
Apply for pumping high temperature liquids which solidifications at lower temperature like liquid sulfur.
Performance parameters
|
Type |
Vertical |
|
Capacities |
3~600 m³/h |
|
Heads |
4~150 m |
|
Temperatures |
-20~+220℃ |
|
Pressures |
~25 bar |
|
Common material |
Carbon steel, 12%Cr, 304SS, 304LSS, 316SS, 316LSS, duplex steel, super duplex steel, Hastelloy, 20# alloy, Monel alloy, titanium, etc. |
Commitment to Service
- 24-hour / 365 days service availability
- Engineering, consulting
- Installation, commissioning/start-up
- Maintenance
- Diagnostics, failure analysis
- Spare parts
- Operational Training
- Life cycle cost evaluation
- Vibration & noise analysis
- On-site testing
- Pre-engineered pumps and maintenance
- Energy conservation retrofit
